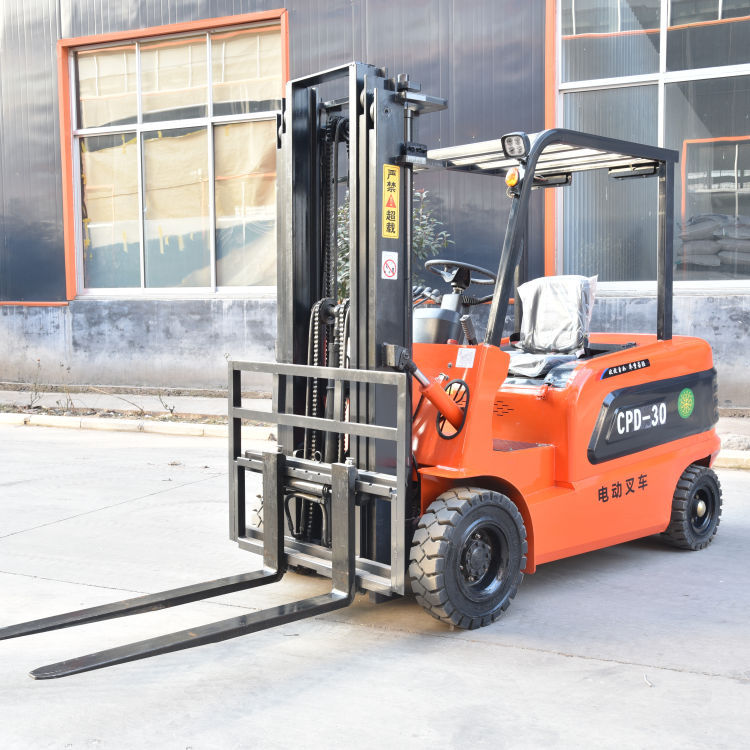

Three-ton Balance Weight Battery Forklift
As the flagship product of the company, the 3-ton CPD series electric forklift adopts a new concept of appearance design method, the whole body line is clear, smart, and has a strong visual strategy.
3 tons balance battery forklift, drive motor adopts international advanced parallel arrangement method, excellent stability, equipped with lithium battery, special solid rubber tire, driving energy saving more than 10%. Support a variety of customization.
- Information
3.0T Basic parameter
manufacturer | |||
Characteristics | unit | ||
Model | CPD30 | ||
driving mode | seated | ||
rated capacity | Q | kg | 3000 |
load center distance | C | mm | 500 |
power mode | lead-acid battery | ||
wheelbase | L1 | mm | 1580 |
tyre type | Solid tyre | ||
wheels number(front/rear) | 2/2 | ||
front track | W3 | mm | 1020 |
rear track | W2 | mm | 950 |
tyre(front) | 650-10 | ||
tyre(rear) | 500-8 | ||
Size | |||
front overhang | L2 | mm | 325 |
tilt of the mast,front/rear | α/β | ° | 5/10 |
height,mast retraction | H1 | mm | 2030 |
free lift height | H3 | mm | / |
overall maximum lift height | H | mm | 4210 |
lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1040/100 |
fork size(LxWxT) | T*W*L4 | mm | 45*122*1070 |
truck body length(fork excluded) | L＇ | mm | 2300 |
truck body width | W1 | mm | 1150 |
turning radius | R | mm | 1950 |
groubd clearance under mast | H5 | mm | 88 |
Ground clearance at center of wheelbase(laden) | H6 | mm | 110 |
width of aisle right-angle stacking | Ast | mm | 3750 |
width of aisle right-angle stacking | Ast | mm | 3950 |
Performance | |||
travel speed,laden/unladen | km/h | 10 | |
lifting speed,laden/unladen | mm/s | 160/190 | |
lowering speed,laden/unladen | mm/s | 450 | |
maximum negoniable gradient,laden/unladen | % | 12/14 | |
Weight | |||
service mass(with battery) | kg | 2800 | |
battery voltage /nominal capacity | V/Ah | 60V/180Ah（10块） | |
battery weight | kg | 400 | |
Electrical configuration | |||
drive motor power-60 minutes | kW | 7.5(AC) | |
lift motor power-15 minutes | kW | 7.5(AC) | |
Detail presentation

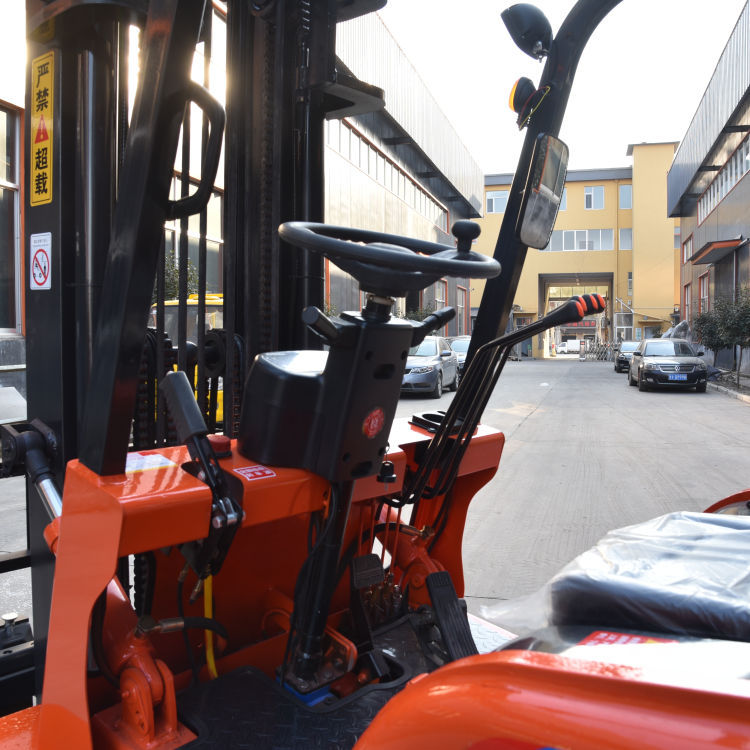

Three-ton balance weight battery forklift,The driver's operation comfort is improved
Safety seat in line with ergonomic Settings, foot operation comfort;The whole car is equipped with LED lights, astern buzzer warning lights, lighting energy saving more than 80%.
Three-ton electric forklift truck matching weighted bridge and electric special tire, in addition to safety, but also effectively improve the endurance of the forklift; At least 10 percent longer.
Three-ton electric forklift, high rear axle structure, the overall lateral stability of 2.1%, three walking mode selection function, adapt to different occasions and working conditions, optional turning automatic deceleration, safer operation.
Wider application scenarios
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are specialized in the production of electric forklifts and other new energy truck manufacturers
Q2: How about the delivery time?
A2: About 15-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
