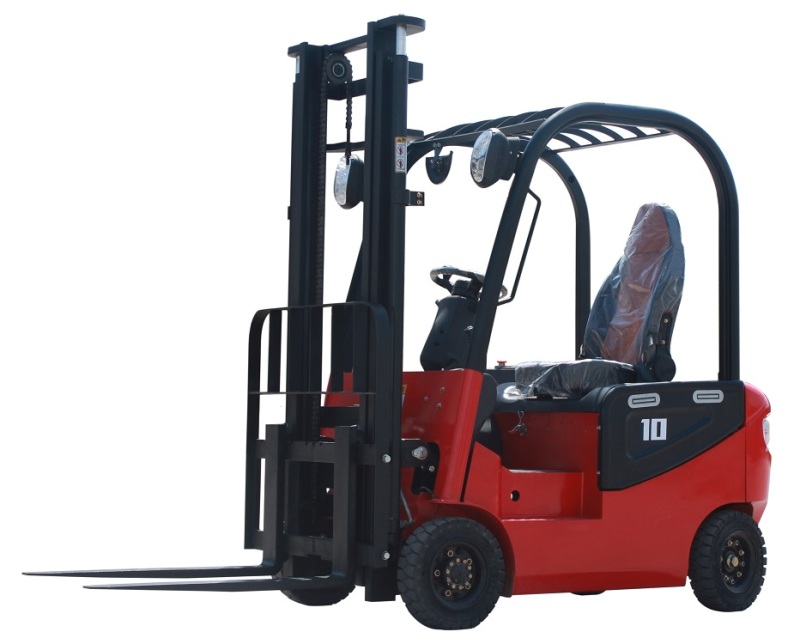

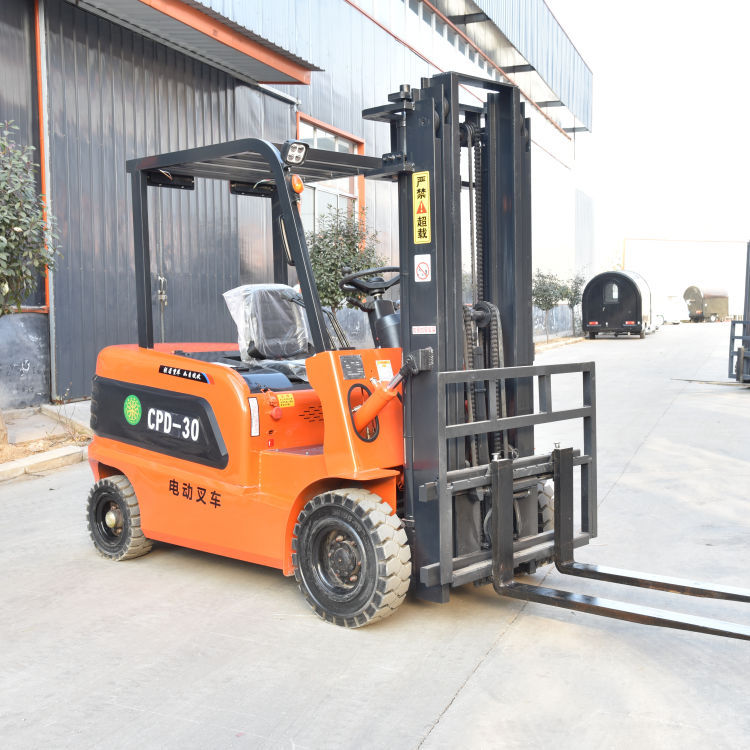

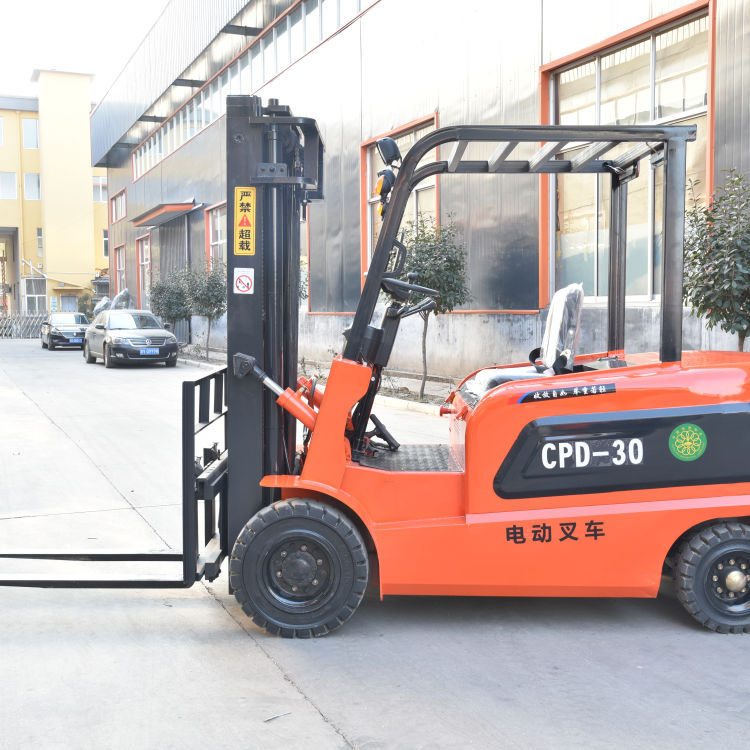

Battery Forklift Truck For Storage And Express Logistics
Warehousing, logistics, textile, food, medicine warehouses and other environmental requirements are increasingly high, so the demand for electric forklift warehousing is also increasing.
Our warehouse loading and unloading electric forklift, motor electric control perfect match, regenerative braking, reverse braking, slope anti-skid function is complete, safe and reliable.
Electric forklift for storage. Zero pollution, low energy consumption, long driving time, support customization, adequate stock, timely delivery period.
- Information
Basic parameter
front overhang | L2 | mm | 325 |
tilt of the mast,front/rear | α/β | ° | 5/10 |
height,mast retraction | H1 | mm | 2030 |
free lift height | H3 | mm | / |
overall maximum lift height | H | mm | 4210 |
lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1040/100 |
fork size(LxWxT) | T*W*L4 | mm | 45*122*1070 |
truck body length(fork excluded) | L＇ | mm | 2300 |
truck body width | W1 | mm | 1150 |
turning radius | R | mm | 1950 |
groubd clearance under mast | H5 | mm | 88 |
Ground clearance at center of wheelbase(laden) | H6 | mm | 110 |
width of aisle right-angle stacking | Ast | mm | 3750 |
width of aisle right-angle stacking | Ast | mm | 3950 |
Performance | |||
travel speed,laden/unladen | km/h | 10 | |
lifting speed,laden/unladen | mm/s | 160/190 | |
lowering speed,laden/unladen | mm/s | 450 | |
maximum negoniable gradient,laden/unladen | % | 12/14 | |
Weight | |||
service mass(with battery) | kg | 2800 | |
battery voltage /nominal capacity | V/Ah | 60V/180Ah | |
battery weight | kg | 400 | |
Electrical configuration | |||
drive motor power-60 minutes | kW | 7.5(AC) | |
lift motor power-15 minutes | kW | 7.5(AC) | |
Application scenario
More details
Electric forklift for storage. Zero pollution, low energy consumption, long driving time, support customization, adequate stock, timely delivery period.
Application scenarios of medium and heavy forklift:
Horizontal handling
Block stacking
Loading and unloading
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are specialized in the production of electric forklifts and other new energy truck manufacturers
Q2: How about the delivery time?
A2: About 15-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4:yes
