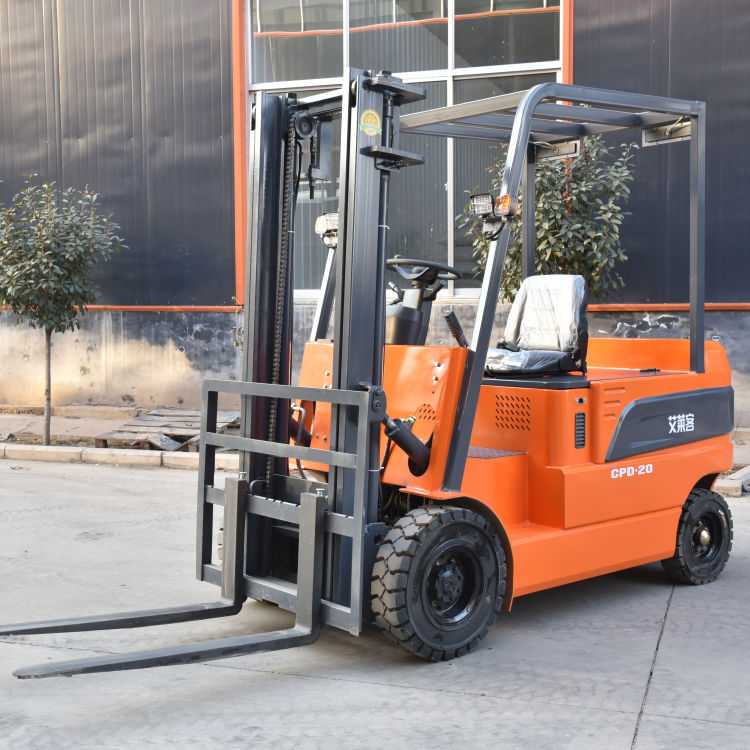

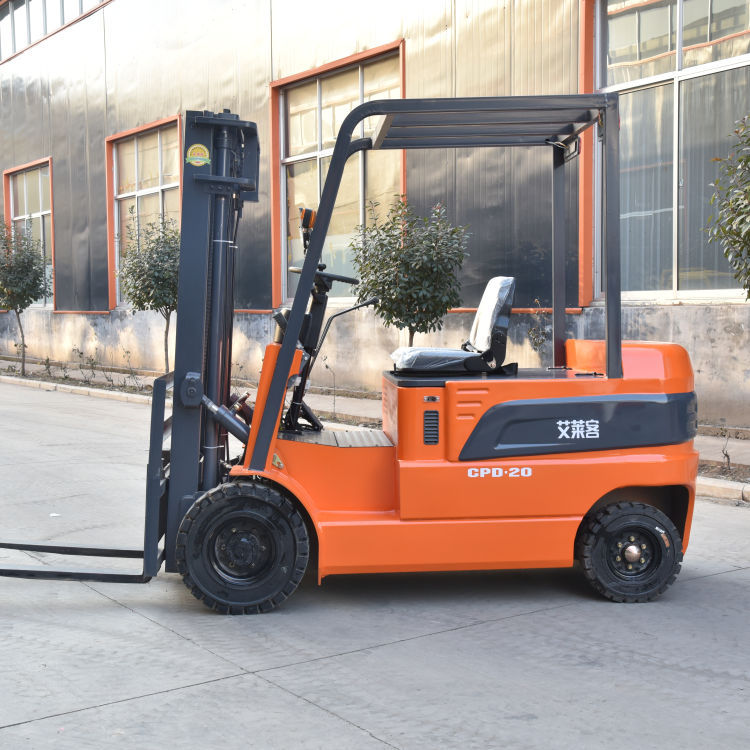

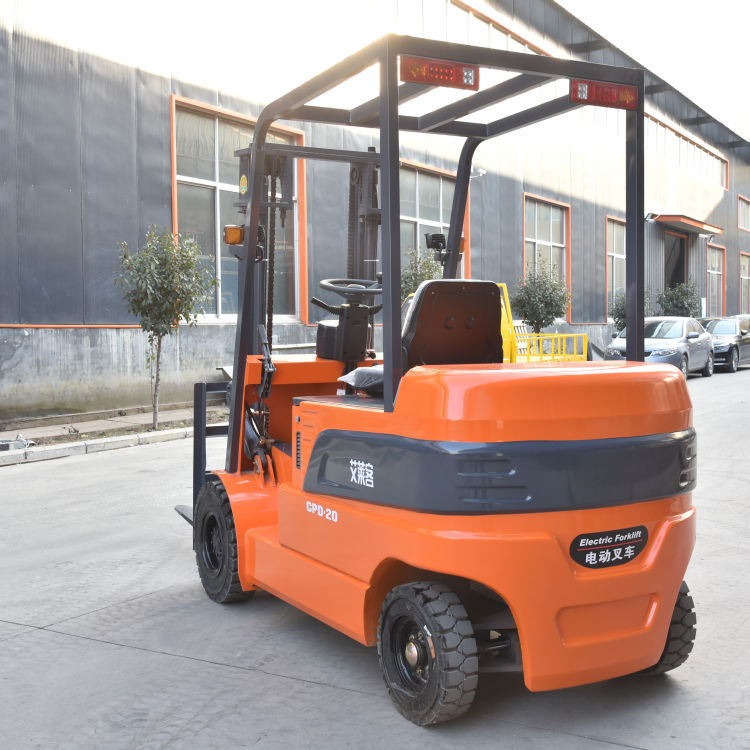

2 Ton Electric Forklift
2 tons electric forklift is a front drive horizontal balanced forklift, using high speed specific transaxle, more efficient work. Suitable for horizontal handling, stacking and other cargo handling.
2 tons electric forklift, the actual load is 2 tons, the fork can be equipped to 1320mm, more stable, more safe. The fork length can also be customized according to the actual use requirements.
- Information
Basic parameter
manufacturer | |||
Characteristics | unit | ||
Model | CPD20 | ||
driving mode | seated | ||
rated capacity | Q | kg | 2000 |
load center distance | C | mm | 500 |
power mode | lead-acid battery | ||
wheelbase | L1 | mm | 1580 |
tyre type | Solid tyre | ||
wheels number(front/rear) | 2/2 | ||
front track | W3 | mm | 1020 |
rear track | W2 | mm | 950 |
tyre(front) | 650-10 | ||
tyre(rear) | 500-8 | ||
Size | |||
front overhang | L2 | mm | 325 |
tilt of the mast,front/rear | α/β | ° | 5/10 |
height,mast retraction | H1 | mm | 2030 |
free lift height | H3 | mm | / |
overall maximum lift height | H | mm | 4100 |
lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1040/100 |
fork size(LxWxT) | T*W*L4 | mm | 40*120*1070 |
truck body length(fork excluded) | L＇ | mm | 2300 |
truck body width | W1 | mm | 1150 |
turning radius | R | mm | 1950 |
groubd clearance under mast | H5 | mm | 88 |
Ground clearance at center of wheelbase(laden) | H6 | mm | 110 |
width of aisle right-angle stacking | Ast | mm | 3750 |
width of aisle right-angle stacking | Ast | mm | 3950 |
Performance | |||
travel speed,laden/unladen | km/h | 10 | |
lifting speed,laden/unladen | mm/s | 160/190 | |
lowering speed,laden/unladen | mm/s | 450 | |
maximum negoniable gradient,laden/unladen | % | 12/14 | |
Weight | |||
service mass(with battery) | kg | 2800 | |
battery voltage /nominal capacity | V/Ah | 60V/180Ah（10块） | |
battery weight | kg | 400 | |
Electrical configuration | |||
drive motor power-60 minutes | kW | 5.5(AC) | |
lift motor power-15 minutes | kW | 5.5(AC) | |
Product highlights
●Three braking systems provide safety protection for the forklift and operator, whether the forklift is in working condition or not.
●Applications of LED headlights/warning lights, low-resistance tires, steering automatic dormancy, and electronically controlled automatic temperature control systems make the forklift endurance strong.
●Ramp assisted braking system, when the forklift starts on the ramp, the system immediately applies a reverse force to the tires to prevent the forklift from moving backward.
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are specialized in the production of electric forklifts and other new energy truck manufacturers
Q2: How about the delivery time?
A2: About 15-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
